Product Description

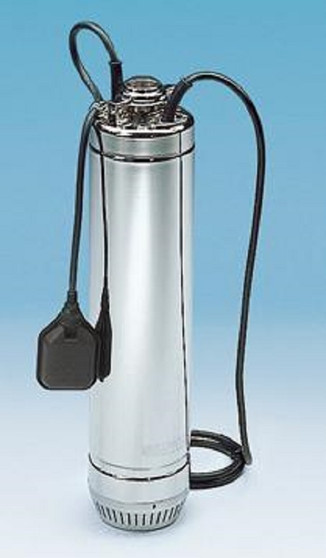

Lowara 3SC5 Scuba Pump
APPLICATIONS
- Water supply from primary water supply tanks or reservoirs, 6” wells, basins and watercourses.
- Sprinkler irrigation systems.
- Pressure boosting with pump directly inserted in tank or well.
- Rain water harvesting.
- Car washing system.
- Pressurization on board ship
- Air purification/humidification systems
- Filtration systems
- Water recycling systems
- Delivery: up to 10,8 m3/h at 2850 rpm.
- Head: up to 100 m at 2850 rpm.
- Motor power: 0,55 to 2,2 kW.
- Maximum operating pressure: 10 bar.
- Single-phase version: 220-240 V, 50 Hz 2 poles (2850 rpm).
- With built-in automatic reset overload protection.
- Cable Length 20m
- Mid Curve Performance 2.85m3 (47lt/min) @3.8bar
OPERATING CONDITIONS
- Temperature of pumped liquid: Standard version: 0 to 40°C/Potable water version: 0 to 23°C.
- Vertical/Horizontal installation
- Maximum immersion depth: 17m
- Maximum permissible quantity of suspended sand: 25 g/m3
- Maximum quantity of chloride at 20°C: 200 PPM
- Passes solids: 1SC: up to 1 mm, 3SC, 5SC, 8SC: up to 2 mm
- The liquid end is located underneath the electric motor, which is cooled by the pumped liquid.
- Impellers are radial centrifugal type, made of technopolymer.
- Diffusers, outer sleeve, motor casing, suction screen and shaft extension are made of stainless steel.
- Head is made of microcasted stainless steel.
- Ease of installation and maintenance due to plug-in power supply cable and float switch
- Potable water version available upon request.
- The electric motor is protected by a double seal system with an oil chamber.
- Sand abrasion resistant impellers
| New Lowara Model # | Old Model Equivalent |
|---|---|
| 3SC4 | SBA345 |
| 3SC5 | 2SC05 |
| 3SC7 | 2SC07 |
| 3SC8 | 2SC09 |
| 5SC5 | 4SC7 |
| 5SC6 | 4SC9 |
| 5SC8 | 4SC11 |
Click for Product Brochure
