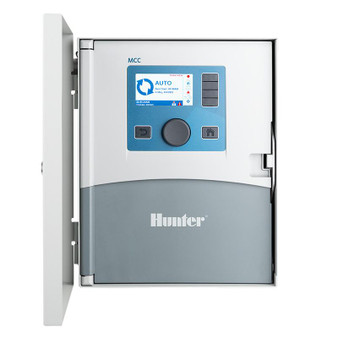

Hunter MCC Two Wire & Wireless

The MCC Controller delivers wireless, wide-area coverage for advanced control of up to 108 stations. Designed to take the complexity out of large-scale site management, this versatile option combines the brain and operating features of the ACC2 Controller with the reliable internal components of the economical ICC2 to deliver powerful performance without the premium price tag. Complete with advanced flow monitoring and management, the MCC also offers a menu-driven, multi-language interface that allows you to command conventional, two-wire EZ Decoders, and Wireless Valve Links — simultaneously! For convenience and interchangeability, the controller uses the same communication modules as the ACC2, enabling cloud-based control via the Centralus Irrigation Management Platform as well as connection to Hunter 360 Software and a host of other SCADA/automation applications.

Key Benefits
Medium commercial controller
Supports conventional, EZDS two-wire, and wireless outputs
Advanced flow management and monitoring
Up to 3 flow sensor inputs
Multiple repeaters supported, with multiple WVOMs on different channels
Up to 8 simultaneous stations plus up to 3 Pump/Master Valves

Specifications
PRODUCT SPECIFICATIONS

MCC-800-M, MCC-800-SS Metal Wall Mount

Height: 41.9 cm
Width: 35.0 cm
Depth: 16.3 cm
MCC-800-P Plastic Wall Mount

Height: 44.9 cm
Width: 36.6 cm
Depth: 16.3 cm
Both models are supplied with a separate wall-mounting plate and hardware.

Enclosure Ratings: Steel Wall Mounts IP55, Plastic Wall Mounts IP55, Plastic Pedestals IP24

ELECTRICAL SPECIFICATIONS

Transformer input: 120/230 VAC, 50/60 Hz
Max AC current draw: 120 VAC, 2A; 230 VAC, 1A
Transformer output: 3 A
P/MV outputs (24 VAC): 800 mA
Communication Options

Wi-Fi: 2.4 GHz, 802.11n
LAN: Ethernet RJ-45, 100 Mbps
Cell: 4/5G LTE
APPROVALS

UL, CE, cUL, RCM, FCC

ADDITIONAL SPECIFICATIONS

Station outputs: Up to 108 stations (54 conventional, 108 in any combination with EZ-DM and WVOM)
