Product Description

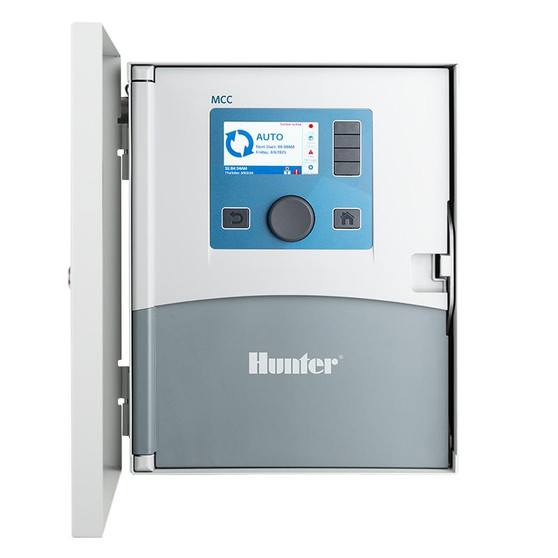

Hunter MCC 8 station Plastic Base
The MCC Controller delivers wireless, wide-area coverage for advanced control of up to 108 stations. Designed to take the complexity out of large-scale site management, this versatile option combines the brain and operating features of the ACC2 Controller with the reliable internal components of the economical ICC2 to deliver powerful performance without the premium price tag. Complete with advanced flow monitoring and management, the MCC also offers a menu-driven, multi-language interface that allows you to command conventional, two-wire EZ Decoders, and Wireless Valve Links — simultaneously! For convenience and interchangeability, the controller uses the same communication modules as the ACC2, enabling cloud-based control via the Centralus Irrigation Management Platform as well as connection to Hunter 360 Software and a host of other SCADA/automation applications.ICC2 is a value-packed, light-to-mid size commercial irrigation controller that delivers more than you expect, just like its famous predecessor. It is designed to control larger projects (up to 54 stations) and offers the water savings you expect from a Hunter controller.
- Number of stations: 8 to 108 (54 max conventional)
- Type: Modular
- Medium commercial controller
- Supports conventional, EZDS two-wire, and wireless outputs
- Advanced flow management and monitoring
- Up to 3 flow sensor inputsEnclosure: Outdoor plastic,
- Backlit display
- Independent programs: 16
- Start Times per program: 10
- Max station run time: 12 hours
- Simultaneous program operation: 8 wired, more possible with wireless
- Warranty period: 5 years
ADDITIONAL SPECIFICATIONS
Station outputs: Up to 108 stations (54 conventional, 108 in any combination with EZ-DM and WVOM)
Electrical Specifications;-
Transformer input: 120/230 VAC, 50/60 Hz
Max AC current draw: 120 VAC, 2A; 230 VAC, 1A
Transformer output: 3 A
P/MV outputs (24 VAC): 800 mA
Communication OptionsWi-Fi: 2.4 GHz, 802.11n
LAN: Ethernet RJ-45, 100 Mbps
Cell: 4/5G LTE
- UL, CE, cUL, RCM, FCC
- Plastic Wall Mount: IP-54 Rated
- Metal Wall Mount (includes stainless): IP-54
- Plastic Pedestal: IP-24
Compatible with
Wireless Valve Link
EZ Decoder Systems
