Product Description

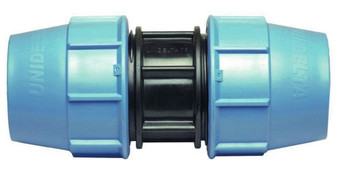

Universal Transition Coupler
- A Compression Universal Transition Coupling used to connect LDPE OR MDPE Pipe to Copper PVC, Galvanised Iron, Lead, Stainless Steel or Steel pipes.
- Quick and easy to use compression water pipe fitting for above and below ground installation. The Unidelta compression fittings in polypropylene ensure a perfect hydraulic seal in pressurised distribution systems.
- The joining system consists of linking the polyethylene pipe by a clamping ring that surrounds and grips the pipe after the blue nut has been tightened.
- Their technical features make Unidelta compression fittings extremely easy and rapid to install.
- The range offers diameters from 16mm to 110mm with 16 bar nominal pressure.
Specifications
- Lock Nut: Blue Polypropylene
- Body: Black Polypropylene
- Split Ring: White Acetal Resin
- 'O' Ring : Nitrile Rubber
- Maximum Working Temperature 80°C / 176°F
- Maximum Working Pressure 16 Atm. / 240psi
- The compression fittings are WRAS approved for use on mains water systems.
- 25mm - 15/22
- 25mm - 20/27
- 25mm - 27/34
- 32mm- 20/27
- 32mm - 27/34
