Product Description
Underground Tank Mains Fill Up for Probes

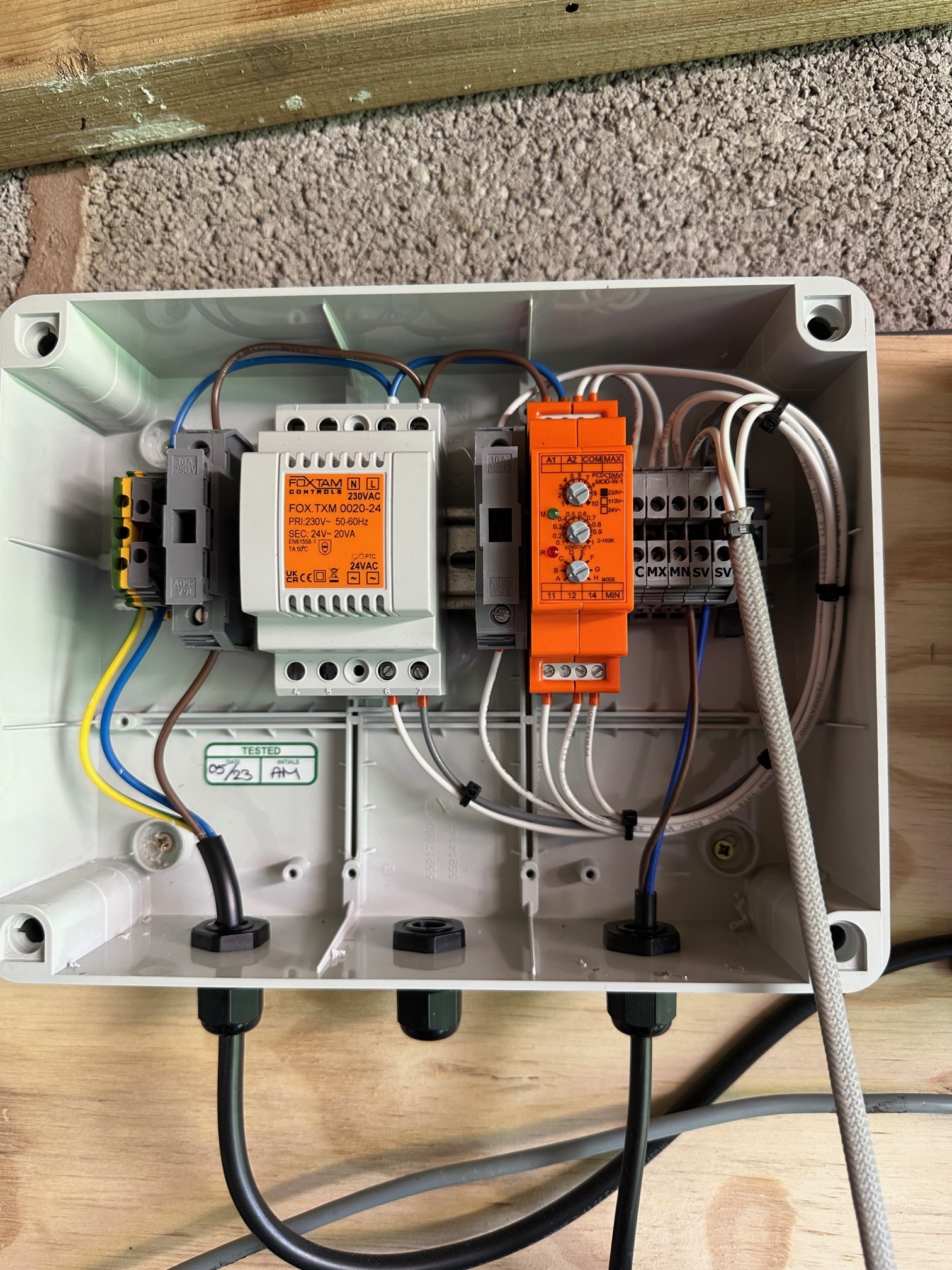

The level control panel comes with a transfomer and 3 cable gland entries for the YY cable for the Probes.
The Panel comes with
- Power Light
- ON/OFF/AUTO
- Valve On Light
These are more accurate and adjustable than the Float type system.
Used for all underground tanks are installed and requires precise mains water top up.
It can sense the top and bottom levels and allow Harvesting water as a main top up with the mains as a secondary supply
Models Available
- Probe panel only
- Probe Panel and 3 Probes Only
- Probe Panel and 3 Probes Only choice of Brass Solenoid valve in 1/2", 3/4" or 1"
- Probe Panel and 3 Probes, 100mts of YY Cable, 3 x DBRY, 1 x Tundish and choice of Brass Solenoid valve in 1/2", 3/4" or 1"
No pipe work is included.

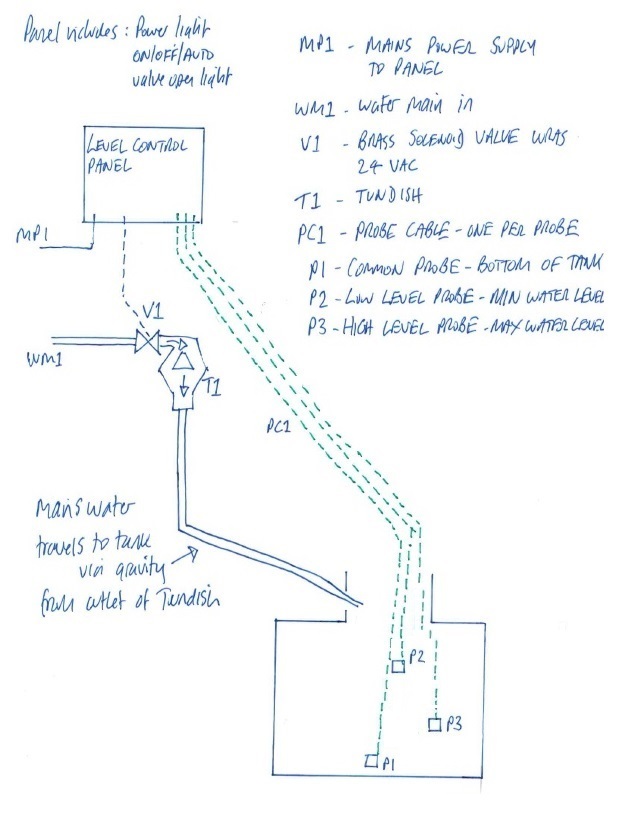

Click for Product Schematic Click for Probe Setup Notes
