Product Description

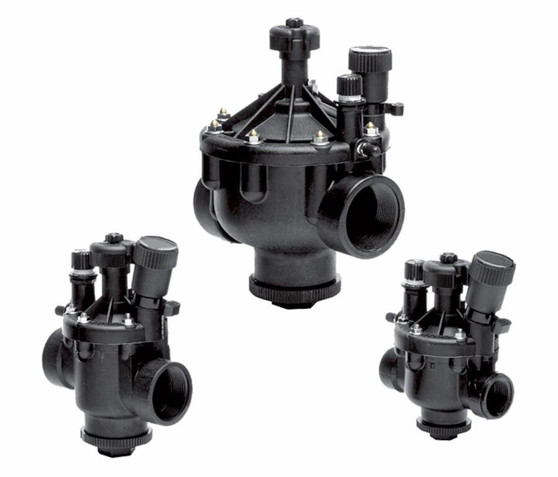

- For proven reliability in the field, the Toro® P-220 Series valves deliver. Constructed of heavy-duty, glass-filled nylon material, these valves are ready to consistently withstand pressures up to 15,1 Bar (220 PSI).
Features & Benefits
Durable Glass-Filled Nylon
Ensures the P-220 can operate at pressures up to 15,1 Bar (220 psi).
Precise Pressure Control Option
Compact EZReg®dial-design technology (factory or field installed - no need to remove solenoid).
Internal And External Manual Bleed
Keeps valve box dry and easy to use.
Schrader Valve Pre-Installed
Simple verifi cation of downstream pressure.
Optional Spike-Guard™ Solenoid
Reduces wire size requirements, allows twice as many valves to run simultaneously on a transformer, and lowers power Costs.
Filter Screen On 2” & 3” Models
Allows for upstream filtration of water to ensure no clogging occurs inside the valve.
Additional features
• Tough glass-filled nylon and stainless steel construction
• Internal and External bleed
• Pressure regulates in electric or pressure-regulating
models
• No external tubing for either pressure-regulating model
• Standard, built-in Schrader-type valve for downstream
pressure verification
• Flow control independent of solenoid
• Self-aligning bonnet to ensure correct installation
• Self-cleaning, stainless steel metering rod
• Low-flow capability down to 18,9 LPM (5 GPM) with EZReg
• Low-power requirement for longer wire runs
Dimensions
• 1”: 171 x 92mm W (6¾” x 35⁄8”) H x W
• 1½”: 184 x 92mm W (7¼” x 35⁄8”) H x W
• 2”: 241 x 156mm W (9½” x 61⁄8”) H x W
• 3”: 273 x 156mm W (10¾” x 61⁄8”) H x W
Operating Specifi cations
• Flow Range:
• 1”: 18,9-132,5 LPM (5-35 GPM)
• 1½”: 113,6-416,4 LPM (30-110 GPM)
• 2”: 302,8-681,4 LPM (80-180 GPM)
• 3”: 567,8-1135,6 LPM (150-300 GPM)
• Operating Pressure:
• Electric: 0,7-15 Bar (10-220 psi)
• Pressure regulating:
• Outlet (EZR-30): 0,3-2,0 Bar (5-30 psi ± 3)
• Outlet (EZR-100): 0,3-7,0 Bar (5-100 psi ± 3)
• Inlet: 0,7-15,0 Bar (10-220 psi)
• Minimum pressure differential (between inlet and outlet) for
pressure regulation: 0,7 Bar (10 psi)
• Burst pressure safety rating: 51,7 Bar (750 psi)
• Body styles:
• Globe/Angle: 25, 40, 50, 75mm (1”, 1½”, 2”, 3”) female
threads
• 118-5983 Solenoid: 24 VAC (50 Hz)
• Inrush: 50 Hz: 0.34 amps
• Holding: 50 Hz: 0.2 amps
