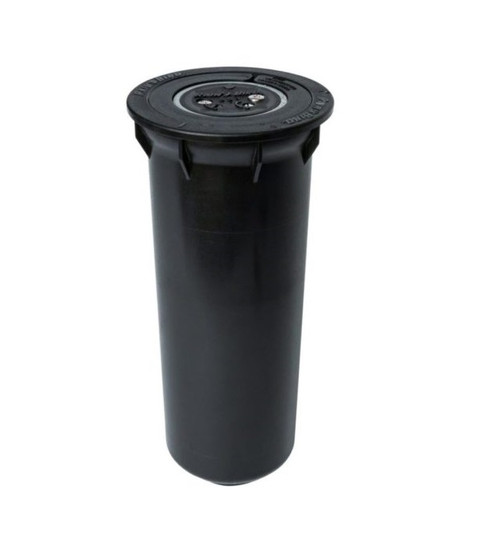

Rain Bird Eagle 752B Block (No Valve in Head) Part Circle

£226.58
(Inc. VAT)
£188.82
(Ex. VAT)
(0) Write a Review
SKU:
RB752B
UPC:
0779850806482
Shipping:
Calculated at Checkout

Product Description

Rain Bird 752B Block (No Valve)

The Rain Bird Eagle 752B offers unmatched flexibility, industry leading uniformity and a constant rotation speed.

Features
  • Closed-case design with self-flushing action protects internal assembly from debris.
  • Water-lubricated gear drive.
  • Unique flushing action keeps debris away from internal parts.
  • 75% Faster Nozzle Changing
  • One stator for any nozzle
  • Easy arc Adjustments
  • Heavy duty retract spring.
  • Top adjustable pressure regulator, preset to 5.5 Bar.
Specification
  • Radius: 5.8 - 25.6m
  • Flow rate: 1.51 - 10.68m³ per hour
  • Pressure: 4.1 - 6.9 Bar
  • 1" ACME female threaded inlet (25mm)
  • SAM check valve holds 3.1m of elevation change
  • Nozzle trajectory:

Standard: 25º

Maximum Inlet Pressure 6.9bar

Comes with a No #40 Orange

Other Nozzles Available are: 28, 32, 36, 40, 44, 48





Click for Product Brochure Click for Product Data Sheet
