Product Description

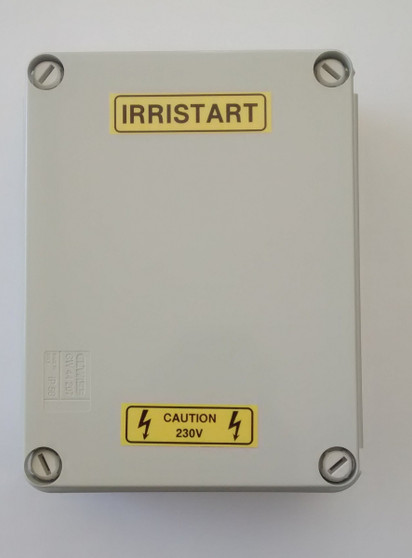

Irristart Pump Start Relay
- Irrigation Pump Start Control Panel with 24 volt AC relay 6 - 9 Amps.
- The panel consists of a waterproof enclosure to IP56 incorporating a motor contactor starter, overload, 24v relay and base and a connector strip.
- These panels simply require the connection of a single phase mains electric supply (via an isolator/switch), a connection to the pump and the 24 volt input from the irrigation controller.
- There is even the option of installing a low level float switch to the panel if required.
- Please note the Irristart is supplied with full wiring instruction.
- Cable glands are not provided.
- Height 190mm
- Width 140mm
- Depth 70mm
Click for Product Wiring Diagram
