Product Description

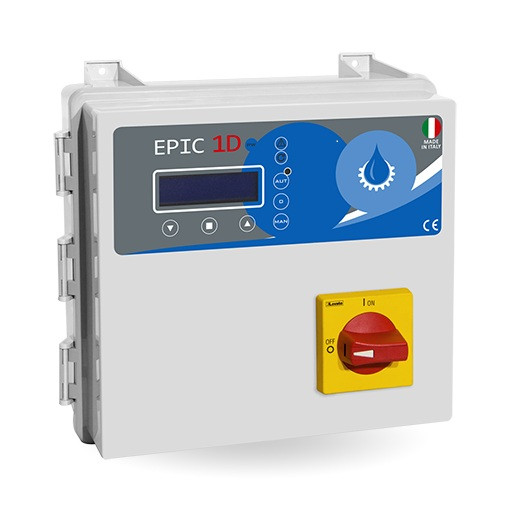

EPIC 1D Pump Starter
The Atlantic Power Control range of EPIC control panels are suitable for a wide range of applications for single and three-phase power supplies.
This is the single pump versions, they can be used for potable, waste and industrial water applications.
They have a built-in facility to 'self-learn' the power requirements of the connected pump on initial commissioning.
They can be set up for tank empty or fill, for level switch and/or pressure switch operation, and have a multitude of advanced functions.
Epic single pump versions are supplied fitted with a 24V AC/DC relay
Technical details
- Control panel for clean and waste water applications
- Data self-learning and motor protections
- Blue external display for parameter visualizations
- Works with floats, pressure switches, probes or 4÷20 mA sensor
- Startup and shutdown delay
- Min/max current protection with alarm
- Min/max voltage protection with alarm
- Motor Klixon protection with alarm
- Water in oli chamber protection with alarm
- Dry running protection with minimum amperage and cos-fi reading
- Min/max level alarm
- BMS kit – Building Management System connection (on demand)
- RS485 kit – serial port for PC, Wi-Fi and GPRS kits (on demand)
- RAIN feature
- Settable timer
General features
- Power supply for 1 motor 1~230V ±10% – 50/60Hz
- Power supply for 1 motor 3~400V ±10% – 50/60Hz
- AUTO-0-MAN automatic/manual start and stop button
- Green led for motor running indication
- Blue led for mains supply indication (ON)
- Auxiliary circuit protection fuses
- Main disconnect switch with door lock
- Provision for start-up capacitor (single phase version)
- ABS box with side hinges and external fixing
- Cable glands kit
- IP55 protection (IP65 available on demand)
- Ambient temperature -5/+50 °C
- Relative humidity 50% at 40 °C (condensate free)
Inputs & alarms
- N.1 probes level control input
- N.4 float switch inputs
- N.1 4÷20 mA input for pressure transducer or level sensor
- N.1 Klixon motor protection input
- N.1 water in oil chamber protection input
- N.1 12Vcc buzzer output
- N.1 12V or NO free contact output
- N.1 230V or 400V output
RAIN feature
Settable timer
- Overload Adjustment: 0-16A
- Maximum Current: 16 amps
- Maximum Motor Size: 2.2kW
- H: 260mm x W: 240mm x D: 130mm
Options
Single Phase - EPIC 1 230/1/50Hz single pump control panel. 0.37-2.2kw 2-16 amps 24 VAC Relay
Triple Phase - EPIC 1 400/3/50Hz single pump control panel. 0.55-7.5kw 2-15 amps 24 VAC Relay
