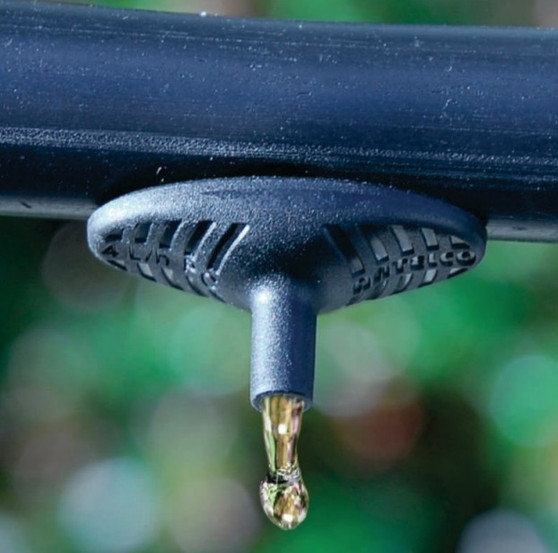

Antelco Pinch Drip Pressure Compensating Dripper

Antelco Pinch Drip Pressure Compensating Dripper

Antelco
SKU:
APD
£0.23 (Inc. VAT)
£0.19 (Ex. VAT)
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 50 - 99 and get 5% off
  • Buy 100 - 199 and get 8% off
  • Buy 200 or above and get 12% off
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Pinch Drip™ Pressure Compensating Emitter

A high performance pressure compensating dripper with a sealed turbulent flow path and diaphragm to maintain uniform flow rates over a wide range of operating pressures. Low profile design to minimise risk of dislodgement from supply tubing and ergonomic finger grips for ease of installation.

  • Available in 2lts, 4lts & 8lts
Applications;
  • Greenhouses, nurseries, citrus, orchards, deciduous and trees irrigation.
Specifications;
  • Working pressure : 0.5 to 4.0 bar TurboNet labyrinth with large water passages. To be inserted'' into thick- walled pipes (0.9, 1.0 and 1.2 mm.) Injected dripper, very low CV.
Features and Benefits;
  • Low manufacturing coefficient of variation (Cv) to provide high performance (conforms to ISO 9261).
  • Three colour coded flow rates: 2 lph (Red), 4 lph (Black) & 8 lph (Green).
  • Self-flushing cleaning action at low pressures.
  • Insect baffle to reduce risk of blockages.
  • Inlet barb has built-in filter.
  • UV stabilised materials for long life.
  • Resistant to common agricultural chemicals & fertilisers.





Click for Product Brochure
