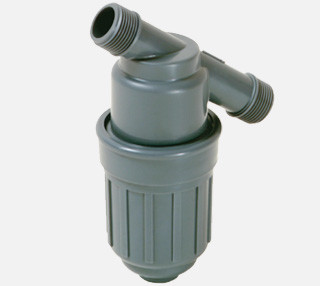

Amiad TAGLINE Filter Series 3/4"
- With their Screen and Disc elements Amiad TAGLINE filters are made for wide range of irrigation applications.
- The TAGLINE filters are available in various filtration degrees to cover the needs of modern irrigation systems.
- TAGLINE filters are made from high quality engineered plastic materials providing excellent mechanical strength, durability and ease of installation.
- Amiad’s TAGLINE filters are easy to maintain; no tools are needed for extracting the filter element from the filter housing for rinsing
| General Data |
| Maximum Flow Rate* |
3 m³/h (13.2 US gpm) |
| Inlet/Outlet Diameter |
¾” (20 mm) |
| Filtration Degrees |
125 micron |
| Max. Working Pressure |
8 bar (120 psi) |
| Max. Working Temperature |
60°C (140°F) |
| Working Temperature Range |
60°C (140°F) |
| Weight (empty) |
Screen = 0.16 kg (0.35 lb) |
| Filter Element Data |
| Filter Area |
Screen = 110 cm² (17 in²) |
| Filter Element Types |
Nylon Screen |
| Construction Materials* |
| Filter Housing |
Polypropylene |
| Filter Lid |
Polypropylene |
| Housing Seal |
NBR |
| Screen |
Construction = Polypropylene Mesh = Nylon Seals = NBR |
