Product Description

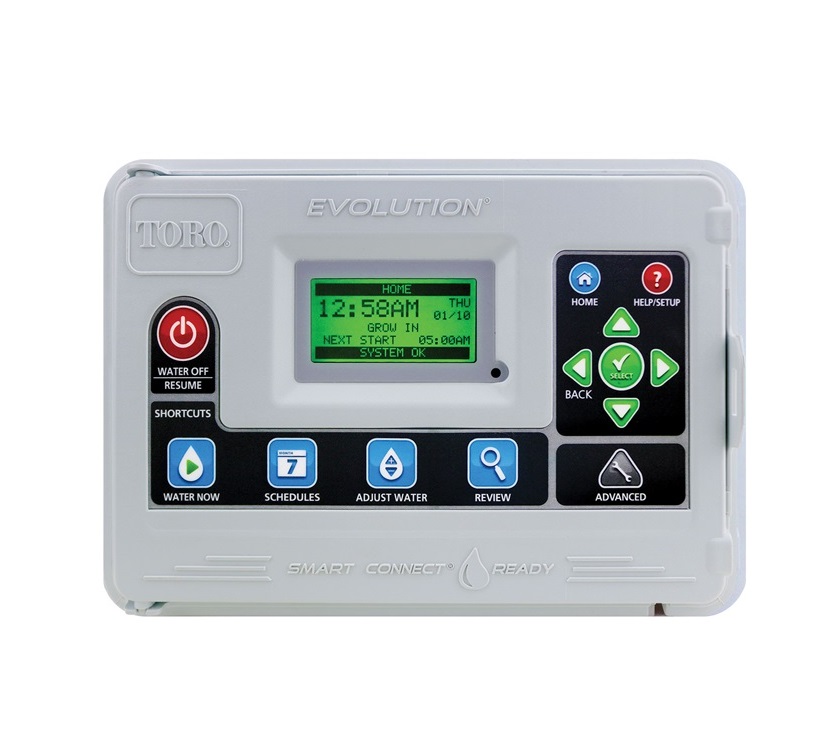

Toro Evolution Outdoor 4 Zone Controller
- Introducing the next generation in controllers! With an intuitive interface and exclusive features for "smart" control, the new Toro®EVOLUTION® is an easy choice for residential and light-commercial applications.
- One schedule in the default “standard” mode.
- Up to six schedules in “advanced” mode:
- Three irrigation schedules, four start times per schedule.
- One fixed auxiliary schedule, plus two virtual.
- Three schuduling choices:
- Seven-day calendar.
- 1- to 30-day interval with up to seven day exclusions.
- Odd/even days with up to seven day exclusions.
- Monthly season adjust by schedule.
- Schedule stacking, with automatic split cycle when season adjust is greater than 100%.
- Grow-in schedule settable up to 90 days automatically reverts to regular irrigation schedule.
- Station runtimes from one minute to twelve hours.
- Allows 30, 60, or 90 second manual runtimes for things such as winterization/blowouts.
- Programmable well-recovery/station-delay from 1 to 60 seconds or 1 to 60 minutes.
- Pump start delay from 1 to 60 seconds.
- Master valve on/off by zone.
- Timed water off from one to fourteen days.
- Compatible with normally-closed rain sensors.
- Automatic short detection for circuit protection and faster troubleshooting.
- Non-volatile memory doesn’t require batteries and holds programming for up to five years
Controller Dimensions
Click for Product Brochure
- Width: 11.25 in. (286mm)
- Height: 7.75 in. (197mm)</li<>
- Depth: 4.5 in. (114 cm)
- 4 to 16 stations with 4 and 12-station hot-swappable modules.
- Cabinet easily mounts to the wall through two easily-accessible screw holes on the upper left-hand and right-hand sides of the controller.
- Red LED next to display lights in the event of an alert.
- 128 x 64 pixel graphical display
- Battery on the timing mechanism for “armchair” programming.
- Outdoor key-lock cabinet manufactured out of durable UV-resistant plastic and includes standardized key used on many of the most popular controllers
- Indoor cabinet includes internal transformer
- Internal Transformer, TUV Approved, SAA Approved
- Input: 220–240 VAC, 50/60 Hz
- Output: 24 VAC, 50/60 Hz, 30 VA
- 6.0 KV common mode; 1.0 KV normal mode
- 9V Alkaline (not included)
