Product Description

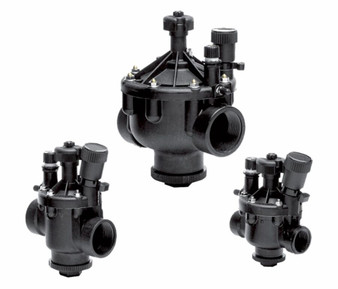

The search for a full-featured yet economically priced, residential and commercial valve is over thanks to Toro’s newest 1” valve off ering − the TPV Series. These full-featured, rugged, debris-resistant valves feature fl ow ranges from 0,38 to 151 LPM (0.1 to 40 GPM), making them ideal for everything from drip to high-fl ow residential and lightcommercial applications. For proven reliability in the field, the Toro® P-220 Series valves deliver. Constructed of heavy-duty, glass-filled nylon material, these valves are ready to consistently withstand pressures up to 15,1 Bar (220 PSI).
Features & Benefits
Tough Double-Beaded, Chloramine and OzoneResistant Santoprene® Diaphragm
Ensures a consistent, leak-proof seal all the way up to 12,0 Bar (175 psi).
Patented DBS (Debris Bypass System) Technology™
Metering system ensures proper functionality, even in tough environments.
Multiple Body Styles
Choose from various styles to meet any installation requirement.
Wide Range of Flows and Pressure
One valve for all site specific needs.
Robust Solenoid Design
Ensures reliable opening and closing
Specifications
Dimensions
• 130 x 70 x 127mm (51⁄8” x 2¾” x 5”) H x W x L
Operating Specifications
• Flow Range: 0,38-151,4 LPM (0.1-40 GPM)
• Operating Pressure: Electric; 0,7-12,0 Bar (10-175 psi)
• Burst pressure safety rating: 68,9 Bar (1000 psi)
• Solenoid: 24 VAC (50 Hz) Standard (118-5983)
• Inrush: 0.34 amps
• Holding: 0.2 amps
Additional Features
• Rugged, Double-Beaded Santoprene diaphragm
• Patented DBS™ (Debris Bypass System) technology
• Operates in low-flow and landscape drip applications when a
filter is installed upstream
• Built with either AC or DC Latching Solenoids
• Manual Operation without the use of a controller—Internal and External Bleed
• Captured hex/Phillips screws
• Optional flow control allows precise zone adjustment and manual shutoff
• Encapsulated solenoid with captured hex plunger assembly
• Removable flow control handle to ensure vandal-resistance
• Slip models feature patented Glue Stop™
• Self-aligning bonnet permits fast and easy servicing
• Large directional flow arrows
