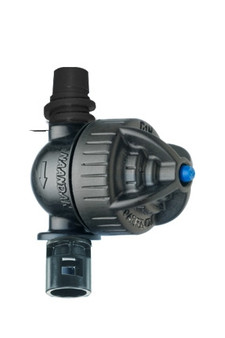

Super Greenspin Bridgeless Bayonet
Naandan
£1.01 - £2.56
(Inc. VAT)
£0.84 - £2.13
(Ex. VAT)
STRUCTURE AND FEATURES
- Bridgeless-no dripping during operation
- No deflection or “dead corners”
- Low trajectory
- Superior uniformity over a wide range of spacings
- Connections to PE or PVC pipes
- Optional Leakage Prevention Device
(LPD) prevents drainage after shut-off
Additional Features
- Manufactured from special grade polymer material:
Components manufactured out of revolutionary polymers
to achieve wear resistance and longer trouble free
performance. - Excellent Precipitation: Gentle precipitation, no damage to flowers / plants
- Quality Come First: Each batch is tested for stringent quality parameters
- Patent pending sprinkler: Sprinkler design is applied for patent.
Applications
- Non-drip inverted micro sprinkler Ideal for overhead irrigation in greenhouses.
Specifications
- Flow Rates: 43 to 200 lph
- Inlet Connection: Tapered Connection
- Wetted Diameter : 8 m to 9.5 m
- Recommended Pressure: 2 kg/cm² to 3 kg/cm²
- Easy to install with different mounting options, for details please refer to “Polyfittings & Accessories” section
Filtration requirement:
- 130 micron for Grey and brown nozzles
- 200 micron for Green, Orange, Black & Blue Nozzle
Technical Data
- Recommended working pressure: 2.0-3.0 bar
- Flow rate: 43-200 l/h
- Filtration requirements:
brown and grey nozzles -130 microns
green, orange, black and blue nozzles -200 microns
Available with or without Drainage preventers
