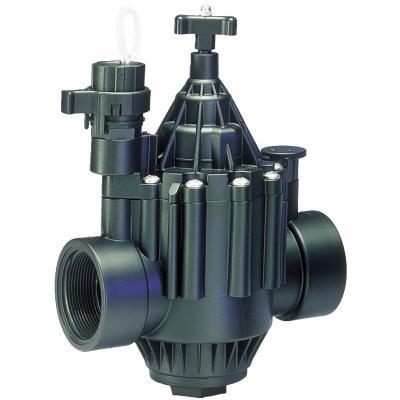

Rain Bird PGA Female Valve
- These valves are designed for a wide range of applications such as municipal turf areas and athletic fields.
- PRS Dial pressure regulating module available.
Features - Heavy duty PVC construction
- Combination globe / angle configuration
- Slow closing to prevent water hammer and subsequent system damage
- Manual internal bleed with ¼-turn of the solenoid
- Filtered pilot-flow
Specifications - Flow: 1.2 to 32 m³/h Pressure: 1 to 10.4 Bar Temperature: Up to 43º C
Electrical Specifications - Solenoid: 24V AC-50 Hz Inrush current: 0.41A (9.9VA) Holding current: 0.23A (5.5VA)
Recommended most efficient range - 1” Flow Rate = 1.2m3 to 6.0m3
- 1 ½” Flow Rate = 6.0m3 to 18.0m3
- 2” Flow Rate = 18.0m3 to 34.0m3
