Product Description

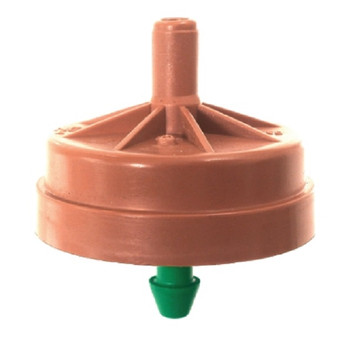

NJD Click Tif HD CNL Dripper Barbed
- The CNL (Compensating non-leakage nozzle) which prevents surplus drainage in low places.
- Maintain the operating pressure within the pressure regulating range.
- While using PCNL model, make sure that static pressure at the dripper shall not be more than closing pressure i.e. 0.3 kg/cm².
- Shall be used with “Lateral Leakage Prevention Device (LLPD) for static head more than closing pressure.
- Filtration recommendation 130 micron or less. Actual quality of filtration can be decided by quality of source water.
- For multiple outlets through single dripper, use multioutlet connector along with stake dipper
- Pressure compensated: Precise and equal amounts of water are delivered over a broad pressure range.
100% uniformity of water and nutrient distribution along the laterals. - Continuously self flushing: continuously flushing debris, throughout operation, not just at the beginning or end of a
cycle, ensuring uninterrupted dripper operation. - Greenhouse and Nurseries with Anti Drain Mechanism and low shutoff pressure.: Eliminates drainage & refill effect, and improves efficiency during pulse irrigation.
- Continuous self-flushing technology ensure consistent flow-rates and flawless operation – even with harsh water.
- Greenhouses, nurseries. Orchards, Vineyards, landscapes and garden plots, Trees
- Garden Pots
- Target Irrigation Areas.
- Maximal working pressure: 3.0 bar.
- 2-12litres per hour flow rate dependent on chosen dripper.
- Use with the Netafim CNL Manifold.
- Regulating pressure range: 0.5-4.0 bar
• Very low CV
• Minimum recommended working pressure 1.0 Bar
• Non-Leakage (CNL): - Opening pressure: 8.0 m
- Closing pressure: 3.0 m
• Filtration Recommendation: 130 micron (120 mesh)
Main Features and Benefits;
- Dripper can be positioned exactly where required.
- Number of drippers can be increased to increase the water quantities applied aimed at meeting growth rate requirements.

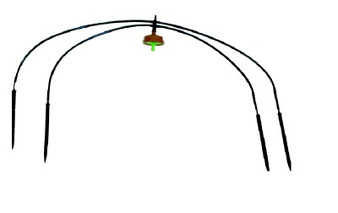

- Allows the installation of "spider assembly", splitting the drip supply to a number of drip outlets
- Heavy Duty range of drippers and accessories in various configurations
- Colour-coded for identification of discharge and model
- Standard 5 mm tapered outlet for working with connectors or barb outlet for 3/5 tube
- Chemical-resistant, high-grade plastic for precision and durability
Four dripper design elements minimize clogging:
1. Protected water inlet
2. Flushing mechanism of regulating diaphragm
3. Strong turbulent flow in labyrinth enables continual cleaning and flushing
- 1.3lts /hr Gray
- 2lts /hr Brown
- 4lts /hr Black
- 8.0lts /hr Green
- 12.0lts/hr Red
Click for Product Brochure
